ShipHero Putaway V2 with LPN Support

In a fast-paced warehouse, time spent searching for bins or double-handling inventory results in lost revenue. Putaway is the essential process of moving received stock into storage locations to make it available for sale. ShipHero Putaway V2 provides advanced control over floor operations, allowing for precise management of complex inventory movements.

Why Putaway Matters for Your Business

In a busy warehouse, misplaced inventory leads to shipment delays. For ShipHero users, the Putaway tool provides several key benefits:

• Consolidates stock and Maximizes Space: Locate existing product bins to prevent items from being scattered and quickly identifies empty or available locations.
• Improves Accuracy: Real-time logging ensures that "Available to Sell" numbers remain precise.
• Direct Replenishment: Identify items flagged with the Replen tag to replenish pickable locations before adding new inventory to overstock locations.

LPN BETA NOTICE: LPN functionality is cutrrently limited to the wholesale interface. Other LPN features are currently in Beta. To enable the full suite of LPN options for your account, please contact your Customer Success Manager (CSM) or email Support@shiphero.com.

Please note that as this feature is actively being developed, processes may change and you may encounter occasional bugs. If you experience any issues or have suggestions, please reach out to our support team—your feedback is greatly appreciated as we continue to refine the ShipHero platform!

Table of Contents:

• Key Enhancements in Putaway V2
• Building Your Putaway List (Draft Mode)
• Executing the Transfer (In Progress)
• Completing your Putaway List
• Frequently Asked Questions

Key Enhancements in Putaway V2

1. LPN Support and Nesting
Putaway V2 introduces comprehensive License Plate Number (LPN) support. This allows operators to scan a single barcode to move an entire pallet or container.

• LPN Nesting: Move multiple sub-containers within a larger pallet as a single unit.
• LPN Unpacking: Unlike previous versions, you can unpack specific items from an LPN directly during the putaway process.

2. Specialized Handling and Unit of Measure (UOM) Support
Managing different units, such as individual items versus cases, is streamlined in V2.

• Dedicated UOM Screen: A specific interface handles various Units of Measure to reduce quantity errors.
• Unique ID Filtering: V2 uses Unique IDs to distinguish between different batches of the same SKU across multiple locations.

3. Real-Time Visibility
V2 provides immediate feedback on task progress.

• Completion Screens: A dedicated screen confirms all items were moved correctly upon task completion.
• Summary Tracking: Operators can access a comprehensive list of all moved inventory during the session.

Feature Comparison: Putaway V1 vs. Putaway V2

ShipHero Putaway V2 introduces significant upgrades to warehouse inventory management, offering enhanced tracking, better data integrity, and real-time visibility compared to the legacy V1 system.

Moving to Putaway V2 is recommended for warehouses handling high-volume LPN movements or complex Units of Measure (UOM) to ensure maximum inventory accuracy.

Building Your Putaway List (Draft Mode)

Before moving physical stock, you must create a Draft List. This acts as your digital manifest of items that require a new location.

1. Navigate to the Products > Putaway screen in the ShipHero Mobile App.

2. Scan one of the following:

   Method	Result	Additional Notes/Limitations
   Scan an Item or Case	Putaway V2 automatically goes into SKU-Filtered mode, and shows only locations containing that SKU. Select the source location and confirm the quantity that needs to be moved.	Single SKU per list. Single origin location per list.
   Scan a Location	All items and LPNs in that location are automatically added to the Putaway list list.	Multiple Locations can be added to a list.
   Scan an LPN	The LPN is added to the Putaway list and the assigned location of the LPN is displayed.	Multiple LPNs can be added to a list.

3. Repeat until your draft list is complete. Then select Start Putaway to save your Putaway list.

Removing an Item/LPN from a Putaway Draft list

If you need to remove a LPN or item from the Putaway List, tap on the card and click on remove at the top right corner.

Executing the Transfer (In Progress)

Once your list is complete, select Start Putaway. The list is now locked, and you may begin the physical movement of stock.

Step-by-Step: Putaway loose stock (individual SKUs)

1. Select the Item: Tap or scan the item on the putaway list to move.
2. Scan the Destination: Locate an empty bin or existing location for the product and scan its barcode. Use the Pickable or Sellable filters to narrow the list of locations.
3. Confirm Quantity: Scan the items as you place them in the bin, enter the quantity manually or select Put away all units to move the full amount.
4. Save and Sync: Select Complete to save the move.  ShipHero updates the inventory logs in real-time. A Green Check indicates the task is complete; an Orange Check indicates a partial movement.

Step-by-Step: Putaway LPNs

When using the Putaway feature with LPNs you have several options on how to complete the invetory move. Follow the instrustuctions below:

1. Scan LPN barcode or Tap on LPN card to start its putaway. The app prompts you to Scan Destination for the LPN

2. Go to the destination Location or LPN and scan its barcode. A pop-up appears with transfer options; depending on the outcome you need select one of the following methods to transgfer the inventory/LPN

   • Method 1: Move an Entire LPN to a Destination Location
   • Method 2: Unpack loose items in the LPN at Destination Location
   • Method 3: Nest an Entire LPN in a Destination LPN
   • Method 4: Transfer loose items from a LPN to a Destination LPN

Method 1: Move an Entire LPN to a Destination Location

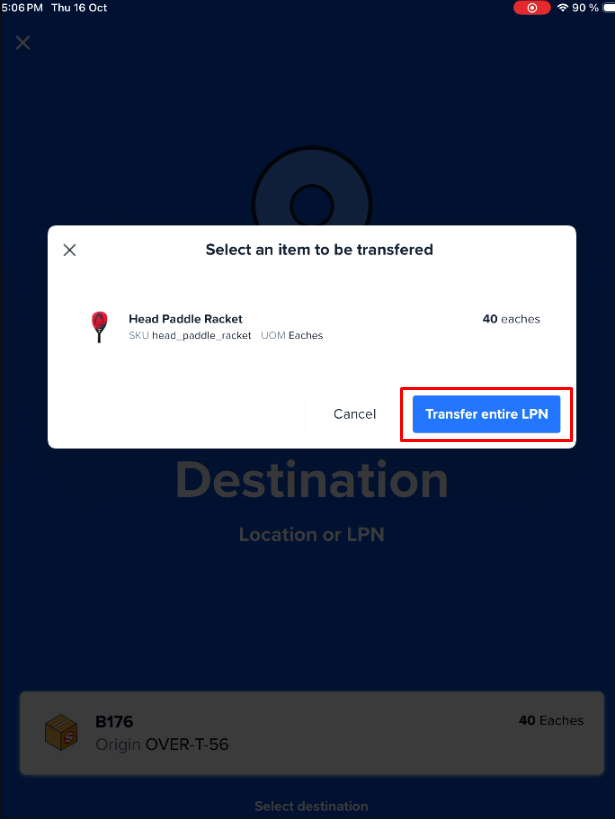

1. After scanning the Destination Location barcode, to move the entire LPN and its contents, tap the “Transfer entire LPN” button.

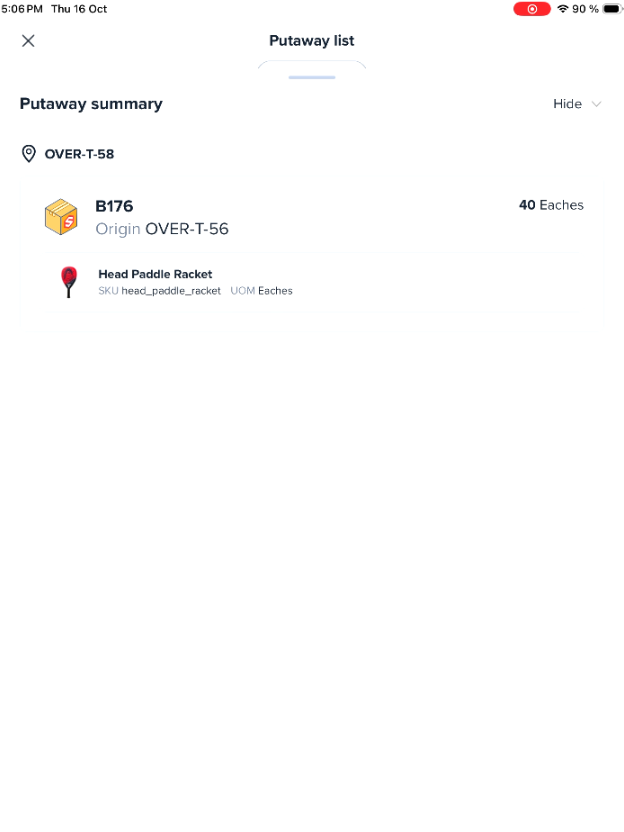

2. On the Putaway summary tab you will see the performed action of moving the LPN to its new Location.

Transfer option screen	Putaway summary

Method 2: Unpack an LPN at Destination Location

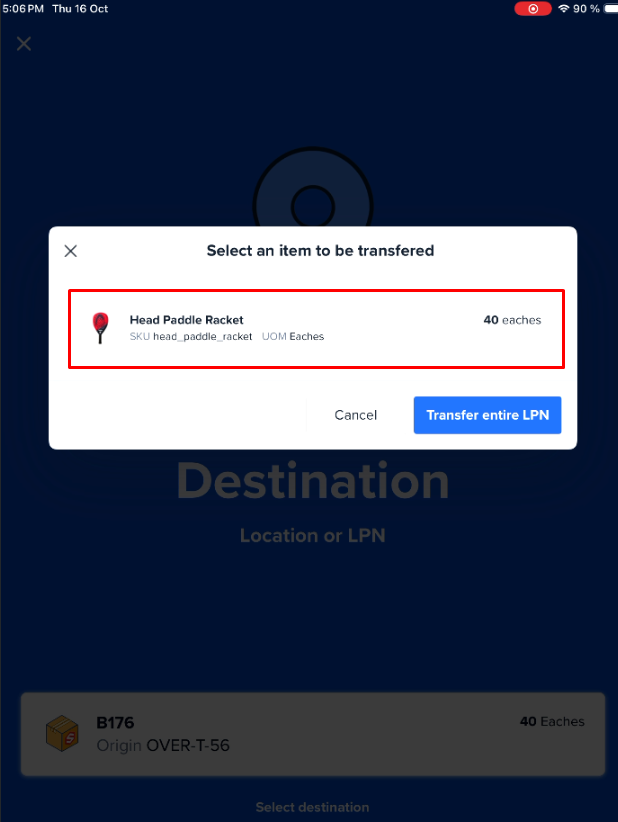

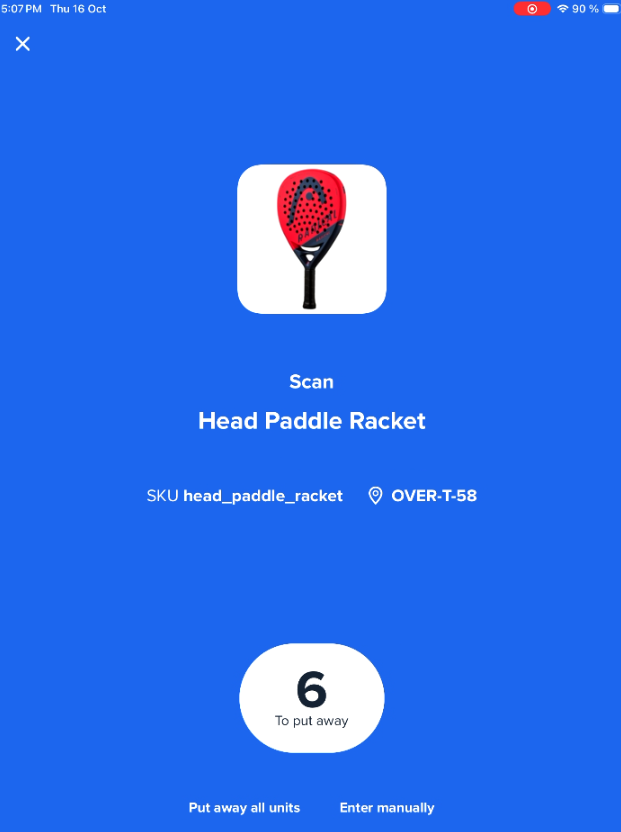

1. After scanning a Destination Location barcode, to unpack the items from the LPN into the location, the user taps on the “product details card”. This action takes you to the unpack items Screen.

2. Scan the item’s SKU barcode to set the amount of items of the SKU you want to unpack from LPN.

   • You can also set the amount manually by tapping on “Enter manually” option at the bottom.

   • If you wish to unpack all units of the SKU from LPN then you can tap on “Put away all units” option at the bottom.

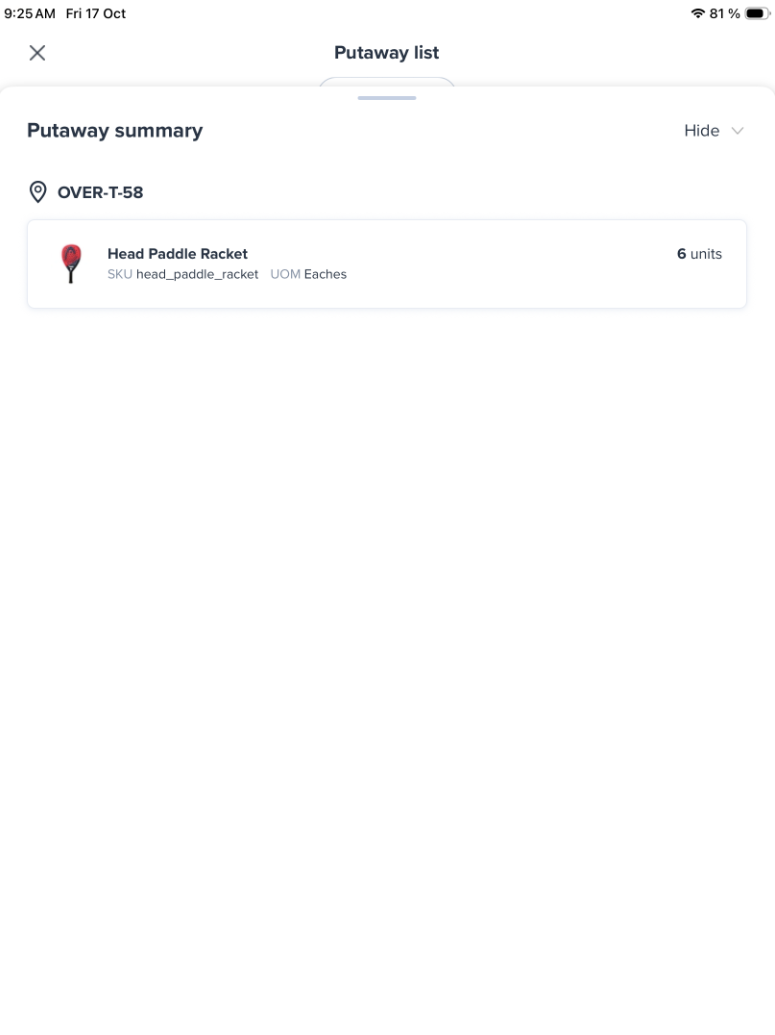

3. On the Putaway summary tab you will see the performed action of unpacking items of an SKU from the LPN to their new Location.

Transfer option screen	Unpack items screen	Putaway summary

Method 3: Nest an Entire LPN in a Destination LPN

1. After scanning a Destination LPN barcode, to nest the LPN into Destination LPN, tap the “Transfer entire LPN” button.

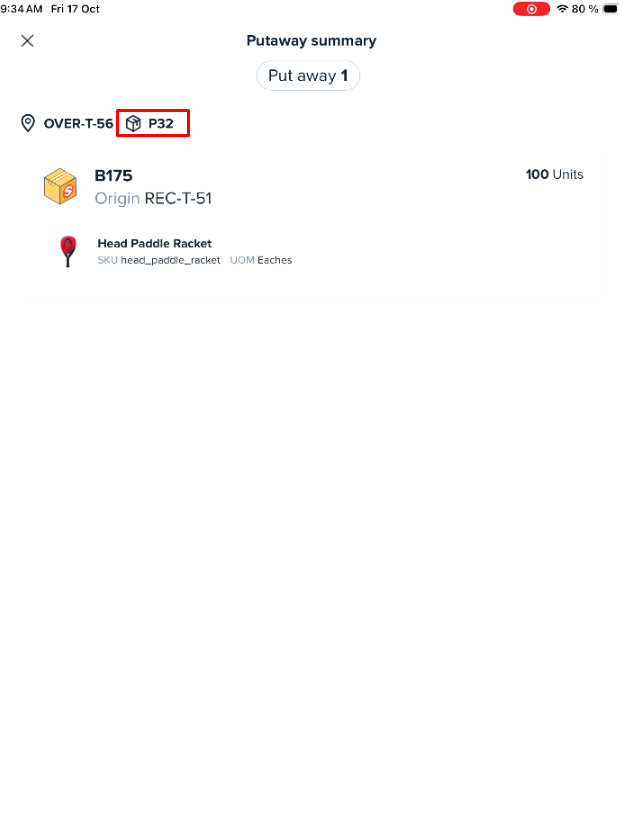

2. On the Putaway summary tab you will see the performed action of nesting the LPN into Destination LPN.

Transfer option screen	Putaway summary

Method 4: Transfer items from a LPN to a Destination LPN

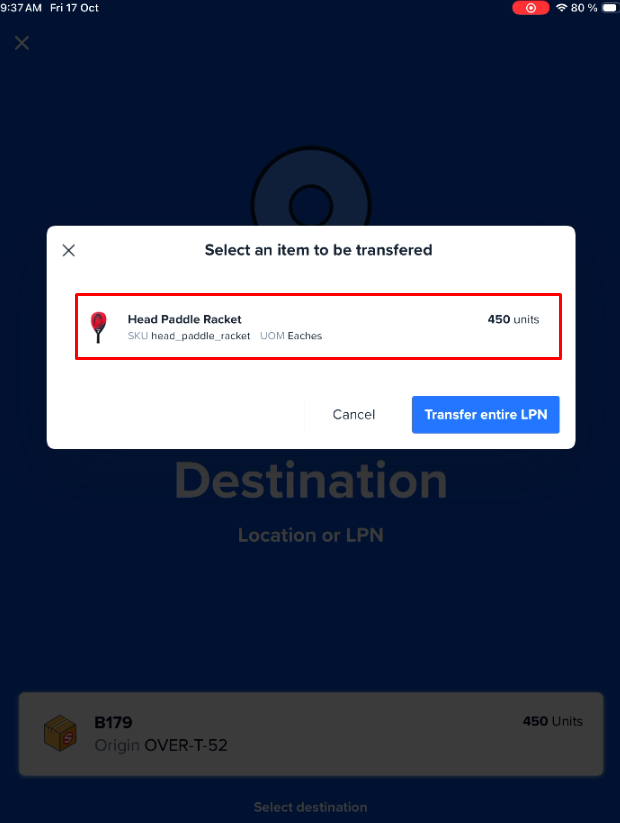

1. After scanning a Destination LPN barcode, to transfer loose items of a SKU from the LPN to the Destination LPN, tap on the “product details card”.

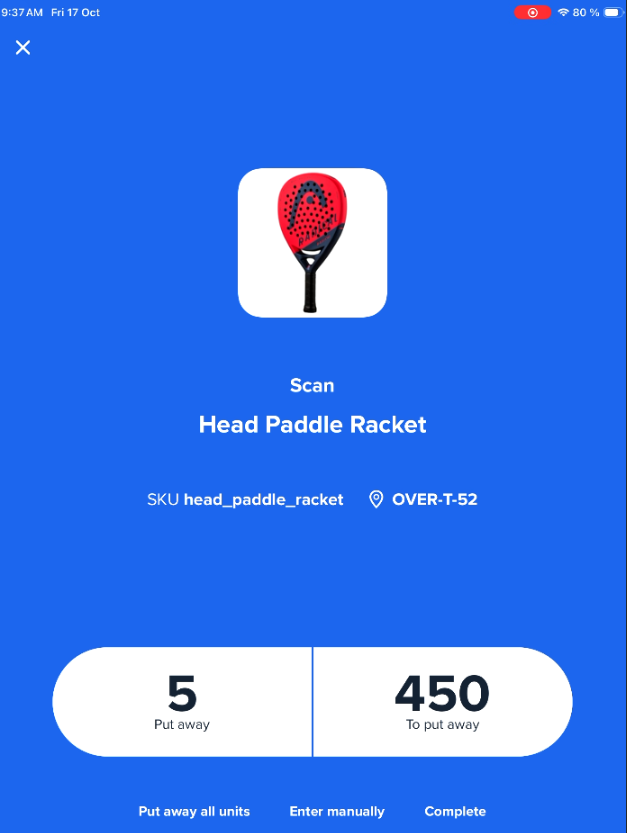

2. Scan the item’s SKU barcode to set the amount of items of the SKU you want to transfer from LPN

   • You can also set the amount manually by tapping on “Enter manually” option at the bottom

   • If you wish to transfer all units of the SKU from LPN then you can tap on “Put away all units” option at the bottom.

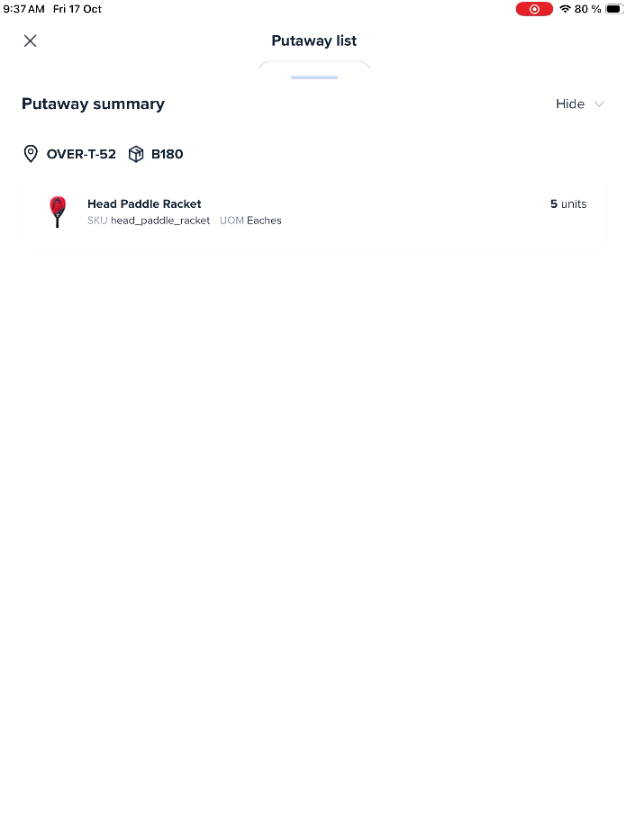

3. On the Putaway summary scrollable tab you will see the performed action of transferring items of an SKU from the LPN to another LPN.

Transfer option screen	Unpack items screen	Putaway summary

Completing your Putaway List

Once all tasks on your list are complete, the app displays a "Ta-da, all done!" confirmation screen.

From here, you can choose to View putaway summary to review the movements you just completed or select Create a new putaway list to begin another task.
