Command Barcodes are scannable shortcuts that execute specific actions in the ShipHero web app or mobile app during picking and packing. Printed on a "command sheet" and placed at packing stations, they let staff complete common tasks (like completing an order and printing a label) with just a scan, without clicking through screens.
Table of Contents
- Key Benefits of Command Barcodes
- How to Use Command Barcodes
- Order Tag and Order Status Command Barcodes
- Package Dimensions Command Barcode
- Customizing Your Command Barcode Labels
Key Benefits of Command Barcodes
- Speed: Scanning a barcode is significantly faster than navigating a UI with a mouse and keyboard.
- Accuracy: Reduces the chance of human error by ensuring the correct command is executed each time.
- Ergonomics: Staff can keep their focus on the package and use the scanner to trigger system actions.
How to Use Command Barcodes
- Download the ShipHero command sheet in the format that fits your scanners:
- Command Barcode Printout (Code 128 barcodes)
- Command QR Code Printout (QR codes for the same commands)
- Cut out the barcodes and place them strategically at your packing stations.
Ship screen command barcodes also work on Bulk Ship pages. See How to Process Orders via Bulk Ship.
Example Workflow: Place the "Print Invoice & Label" barcode on the packing table and the "Complete Order" barcode on the label printer. This encourages a smooth flow and reduces the chance of scanning the wrong barcode while packing.
| Command Type | Command | Barcode | Action/Purpose |
|---|---|---|---|
| Order Packout Commands | Add New Package | sh0010 | Opens a new package for a multi-package order. |
| Get Weight | sh0005 | Triggers the scale to get the package weight. | |
| Take ParcelView Snapshot | sh0009 | Captures a picture of the package contents (requires ParcelView setup). | |
| Send to Hospital | sh-hospital | Designates an order for further review or correction. | |
| Print Invoice | sh0001 | Prints the invoice for the current order. | |
| Print Label | sh0002 | Prints the shipping label for the current package. | |
| Print Label And Invoice | sh0003 | Prints both the shipping label and invoice simultaneously. | |
| Complete Order | sh0004 | Finalizes and completes the current order. | |
| Next Order | sh0008 | Loads the next order in the queue. | |
| Unpack All | sh0020 | Unpacks every item and resets the order's boxes. Blocked until any printed label for the order is voided. | |
| Navigation and Confirmation Commands | Ok/Confirm | sh0011 | Confirms a system prompt or action. |
| Cancel | sh0015 | Cancels the current action or process. | |
| Go Home | sh0014 | Navigates back to the home screen/dashboard. | |
| Toggle WFH and Shipping | sh0017 | Toggles between Workforce Hero and Shipping interfaces. | |
| Wholesale Packout Commands | Add New Pallet | sh0012 | Starts a new pallet. |
| Add New Inner Box | sh0013 | Adds a new inner box within an order. | |
| Work Order Commands | Work Order Next Stage | sh0016 | Advances the work order to the next stage of processing. |
Order Tag and Order Status Command Barcodes
Order tag and order status command barcodes assign an order tag or change the order status assigned to you, without opening a menu. These barcodes work in the ShipHero Mobile App and on the desktop Single Order listing page.
Unlike the fixed command barcodes above, these barcodes include the tag or status name you want to apply. The tag or status must already exist in your account.
- Order status barcodes on the desktop Single Order listing page: capitalization doesn't matter, so shos__hospital and shos__HOSPITAL work the same way. Spacing must still match the status name.
- Order tag barcodes, and order status barcodes in the ShipHero Mobile App: the name must match exactly, including capitalization and spacing.
To create an order tag or status barcode, use QR + Barcode Studio. The generator user guide explains the tag and status options and includes a walkthrough video.
| Command Type | Barcode Format | Example | Action/Purpose |
|---|---|---|---|
| Assign Order Tag | shtag__[TagName] | shtag__Priority | Assigns the order tag "Priority" to you. See How to Use Order Tags in ShipHero. |
| Change Order Status | shos__[StatusName] | shos__Hospital | Changes your assigned order status to "Hospital." See How to Use Order Statuses in ShipHero. |
On the ShipHero Mobile App, scan these barcodes from the Dashboard screen. On desktop, scan them from the Single Order listing page. See User Guide: ShipHero iOS Mobile App.
Package Dimensions Command Barcode
The package dimensions command barcode fills in the length, width, and height of the current package on the desktop packing screen, and can fill in the weight too. A box barcode selects one of your saved shipping boxes. The package dimensions barcode sets whatever dimensions are in the barcode, so you don't need a saved box for every size.
Common uses for the package dimensions command barcode:
- Box sizes that vary: the dimensions change from package to package, so a fixed set of box barcodes doesn't cover them.
- Barcodes created on demand: another tool or system generates a barcode with the exact measurements for each package, and the packer scans it.
- Made-to-size packaging: on-demand box systems, such as Packsize, make a box sized to each shipment, so the dimensions are different every time.
The package dimensions barcode works when packing single orders, Single Item Batches (SIB), and Multi-Item Batches (MIB). It isn't supported for wholesale orders.
The values are part of the barcode, separated by colons. Enter them in the same units the packing screen shows (for example, inches and pounds). After the scan, the shipping box stays set to Custom.
| Barcode Format | Example | Action/Purpose |
|---|---|---|
| shdim_[Length]:[Width]:[Height]:[Weight] | shdim_10.00:8.25:6.30:8.5 | Sets the package to 10.00 x 8.25 x 6.30 and the weight to 8.5. |
| shdim_[Length]:[Width]:[Height] | shdim_10.00:8.25:6.30 | Sets the package to 10.00 x 8.25 x 6.30. The package weight doesn't change. |
Customizing Your Command Barcode Labels
Use the Barcode Label Generator to select specific command barcodes, print box barcodes, or output at a custom label size.
The generator also has a B2B Commands tab for wholesale packing barcodes. For what each wholesale barcode does, see Using Command Barcodes for Packing Wholesale Orders.

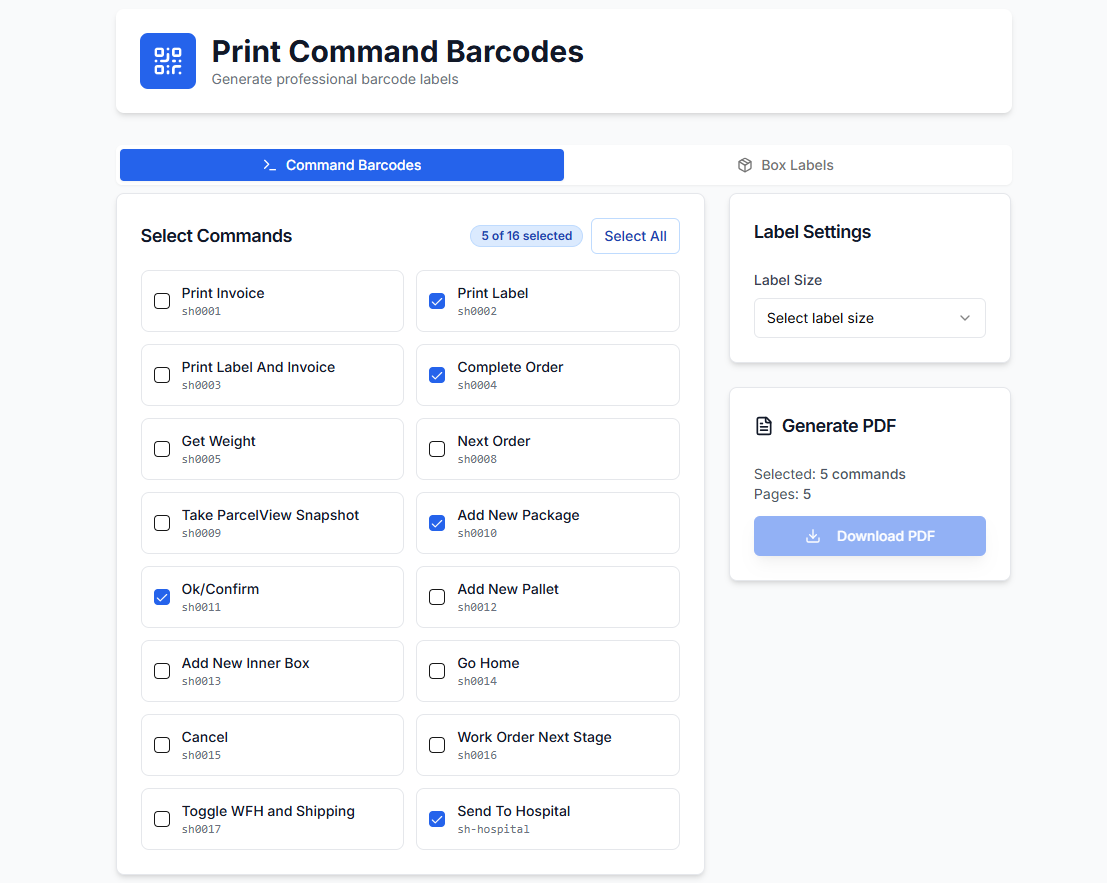

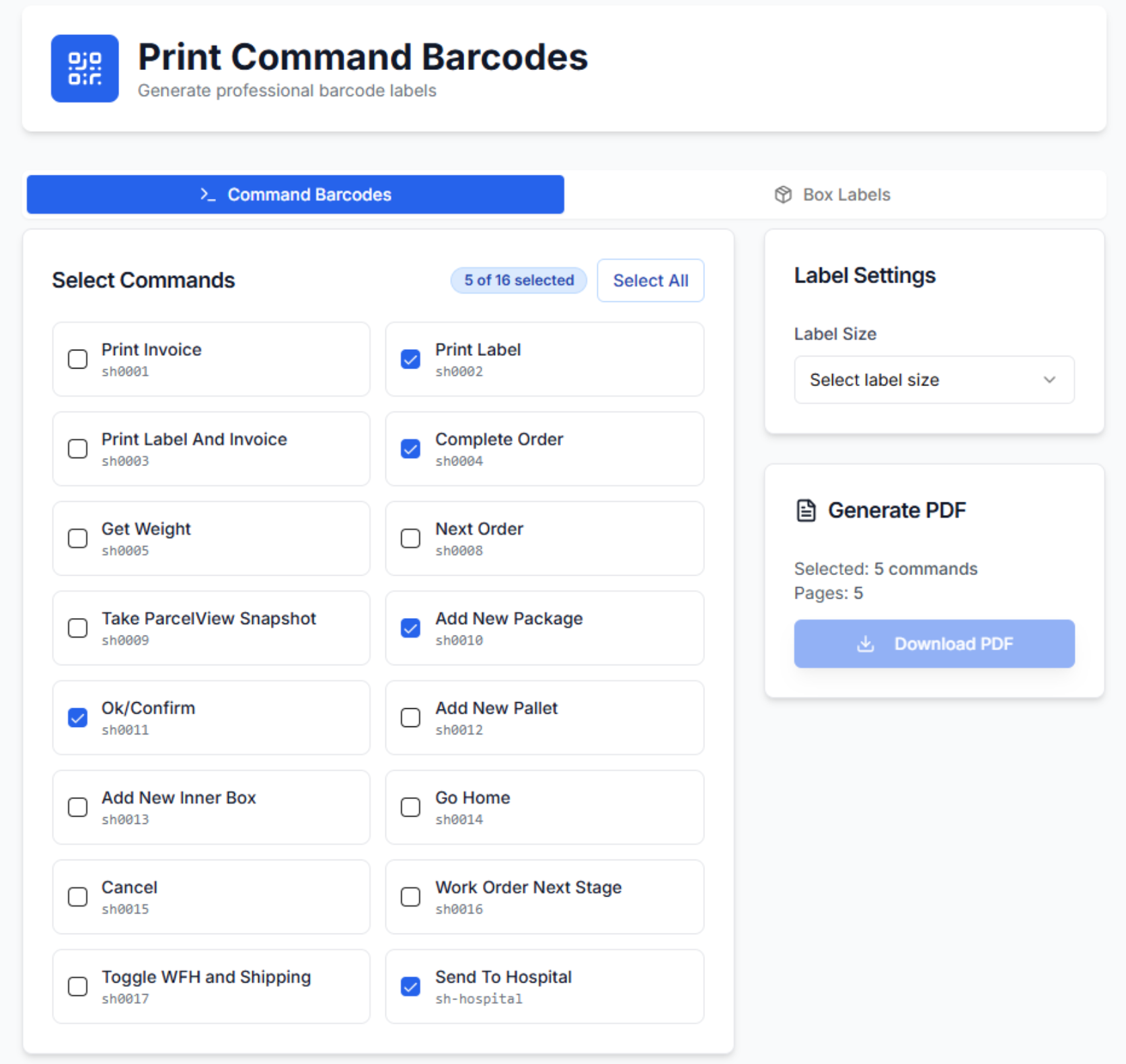

Generating Select Command Barcodes
- On the Command Barcode tab, select the barcodes you need.
- Select from the dropdown or enter a custom label size.
-
Click Download PDF to generate your barcode file for printing.

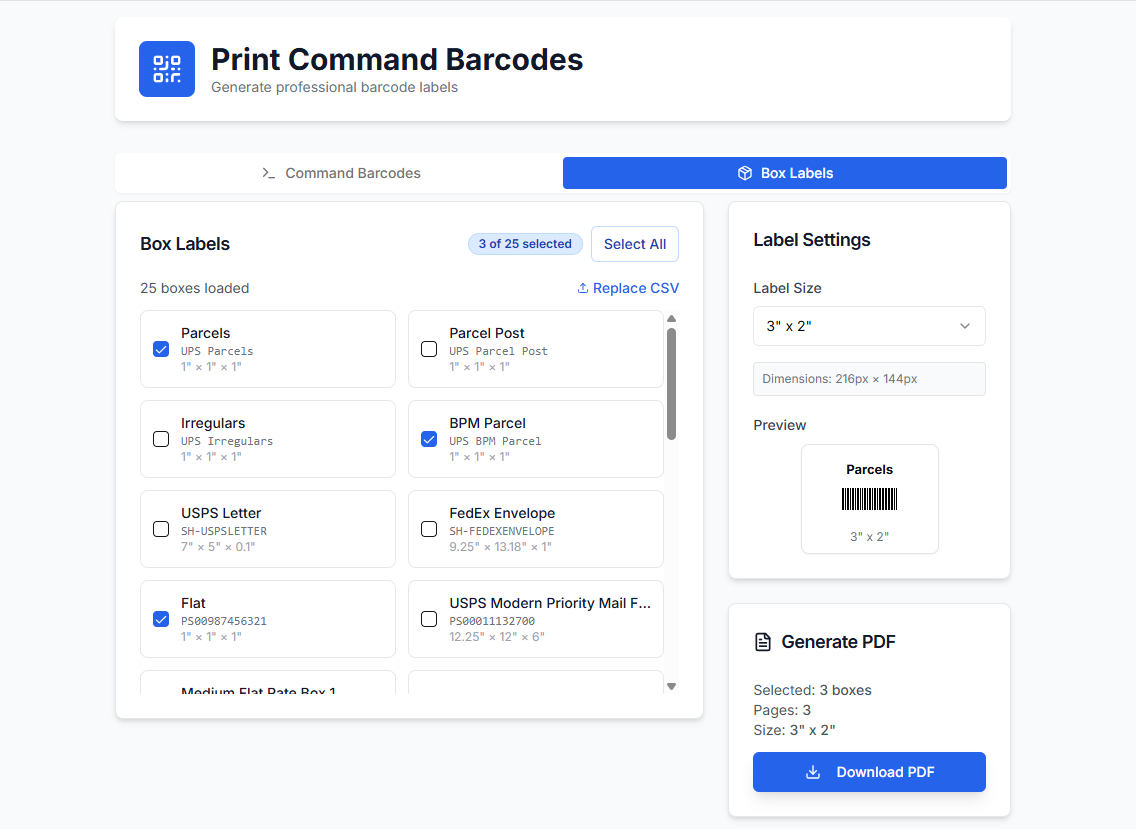

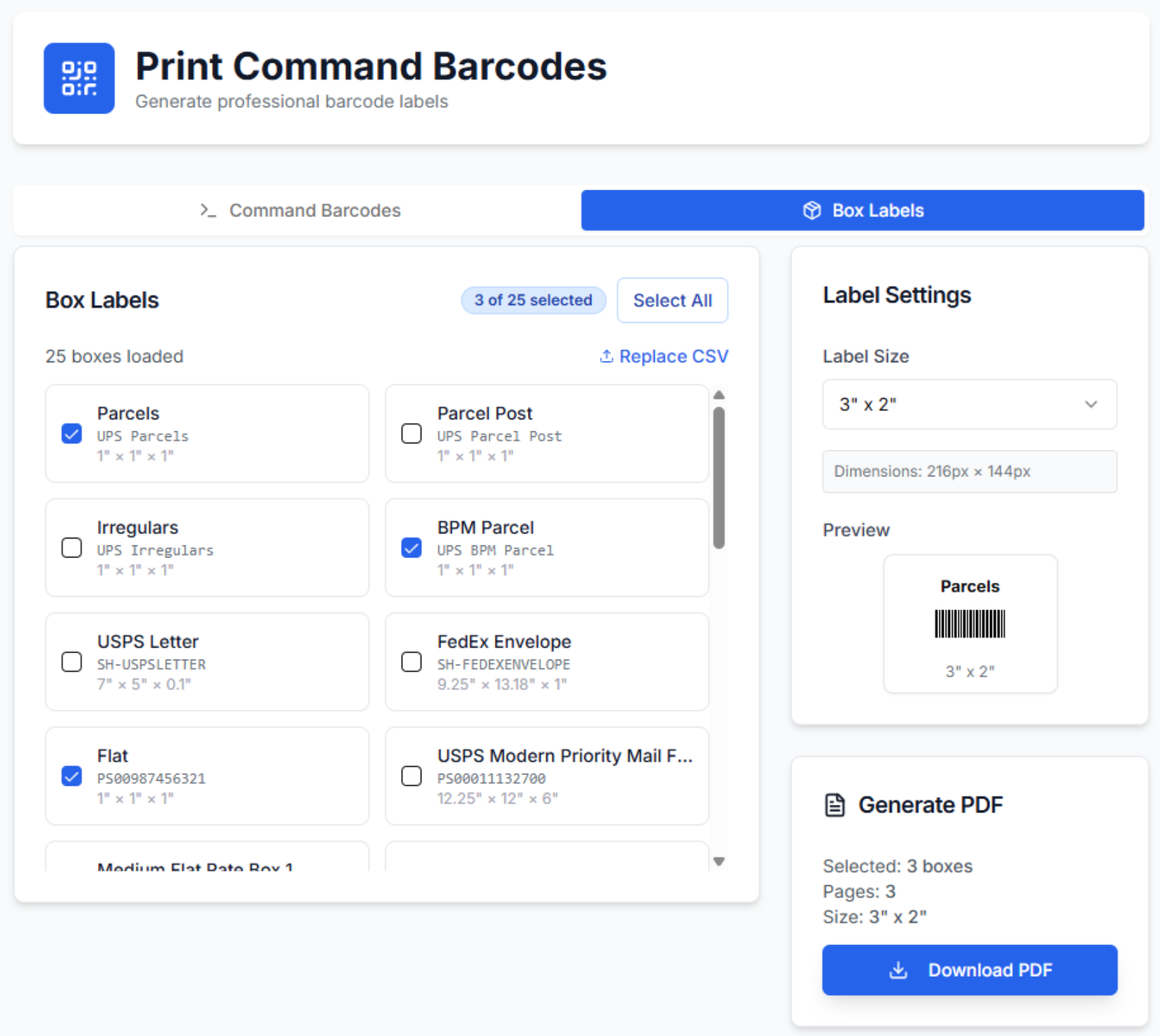

Generating Box Barcodes with the Barcode Label Generator
First download a CSV of your box information from the Shipping Boxes page, then:
- Go to the Box Labels tab and upload your CSV.
- Select from the dropdown or enter a custom label size.
- Click Download PDF to generate your barcode file for printing.
